Monitoring k8s resource requests/limits using prometheus

I wanted to keep track of pod resource requests/limits using prometheus and grafana for one of the clusters I admin.

There are a couple of grafana dashboards designed for this (ex:https://grafana.com/dashboards/7187) and even the official kubernetes app for grafana has some useful dashboards. But I opted for using the dashboard I linked above because I wanted the stats in the whole cluster perspective.

But the problem was, the dashboard doesn’t filter pods by its state(Running, Completed, etc..) and my cluster has an app that create a lot of one time pods. The dashboard count all the dead pods in it’s resource requests/limits aggregation and it adds up to a gigantic number.

So I had to modify the dashboard a bit to get the true(active) values for the cluster. The trick is to combine kube_pod_status_phase metricand kube_pod_container_resource_requests_cpu_coresmetric(or kube_pod_container_resource_limits_cpu_cores, kube_pod_container_resource_requests_memory_bytes, kube_pod_container_resource_limits_memory_bytes) to get the resource requests/limits of the running pods only.

I’m not very familiar with the prometheus query language so I had to google quite a lot to find out a similar example. After reading the blog post, I came up with something like,

1

 kube_pod_container_resource_requests_cpu_cores == on(pod, namespace) group_left() (kube_pod_status_phase{phase="Running"}==1)

but this didn’t work!, it returned empty dataset. After trying a couple of more configurations, I decided to go on the prometheus IRC chat and ask there. As SuperQ on the prometheus IRC very helpfully explained, the **==**operator compared the numerical values of the metics, it doesn’t magically merge the metric entries even if we use **group_left.**According to SuperQ’ssuggestion, I changed my query to,

1

 kube_pod_container_resource_requests_cpu_cores and on(pod, namespace)(kube_pod_status_phase{phase="Running"}==1)

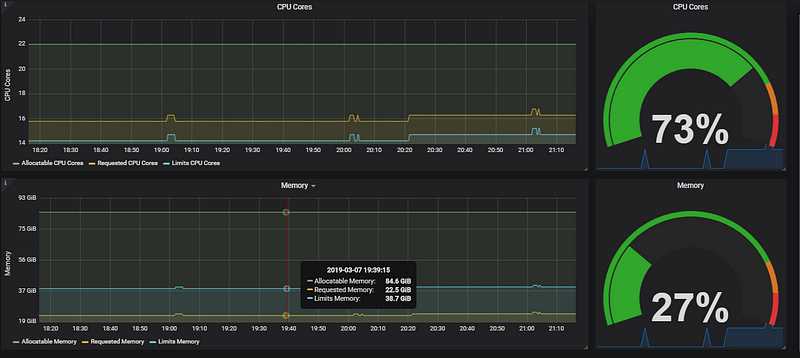

And it started working. the only disadvantage is that we can’t use group_by to merge the two metric entries with binary operators like and(but if you need to merge, you can use something like /on(pod, namespace) group_by()(kube_pod_status_phase{phase=”Running”}==1)) I didn’t see a lot of helpful articles or examples on something like this besides the prometheus docs so I decided to write it down. Here is a screenshot of my new dashboard.

And the dashboard json.

Written on March 7, 2019 by Madushan Nishantha.
